Description
Alinco DR-235TMKIII 220 MHz Mobile Transceivers are very popular 220 MHz VHF mobiles. The DR-235TMKIII transceivers deliver performance and quality without compromise.
Their user-friendly configuration and easily-programmable features make DR-235TMKIII 220 MHz rigs an ideal choice for mobile ham operations.
General features of DR-235TMkIII transceivers:
* Power settings: 25 watts, selectable H/M/L
* 100 memory channels
* Front panel data port

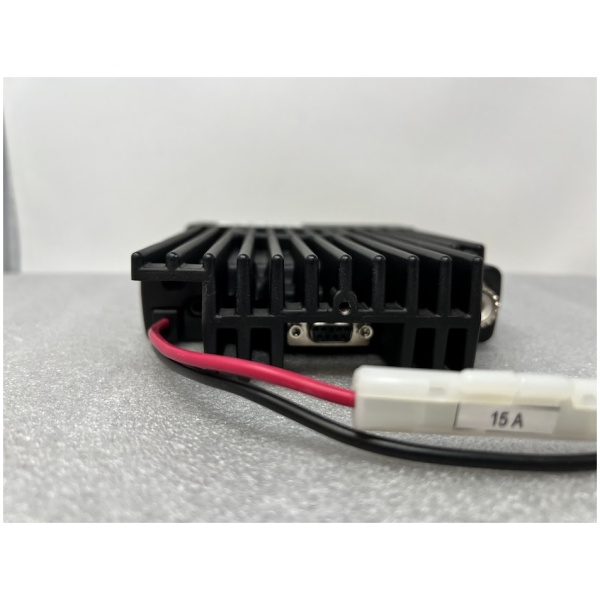

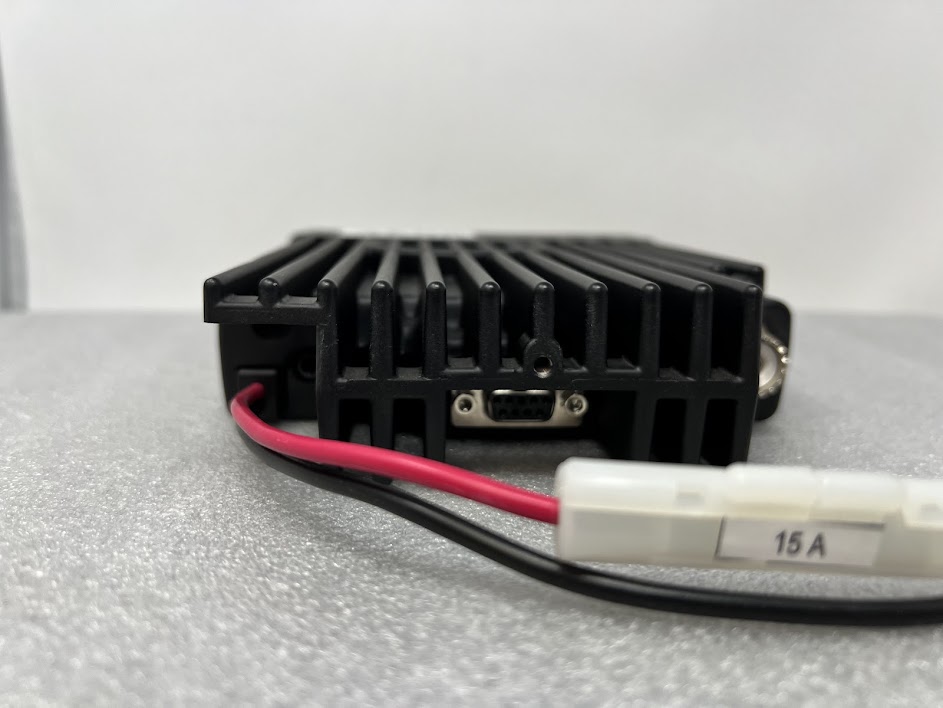

* Rear panel DB-9 Sub computer connection
* No need to remove mic for packet operation
* Ignition key on/off feature
* CTCSS, DCS encode decode, DTMF encode and Tone-burst are all standard
* Clean, clear Alinco audio
* Super-wide 7 character alphanumeric display
* Wide and narrow FM modes
* Theft alarm feature

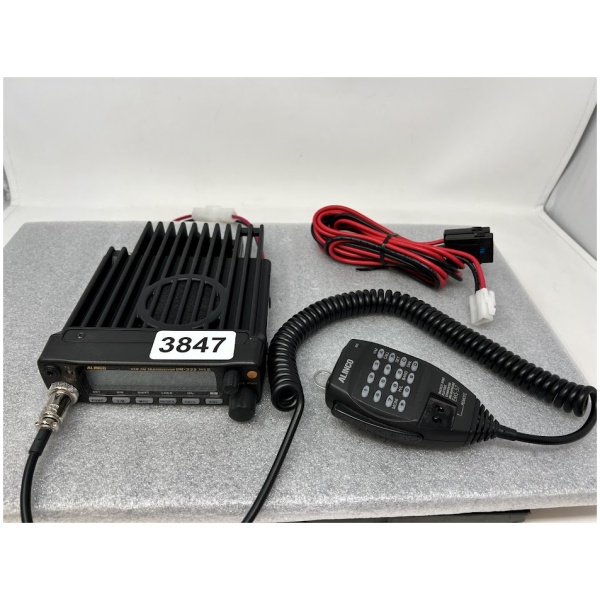

* A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug)
* Stays in mode you select (voice/packet) through power off cycles
* Ten autodial memories
General specifications:
* Frequency range TX: 222.000 – 224.995 MHz (FM); RX: 216.000 – 279.995MHz (AM and FM)
* Operating mode: 16K0F3E (FM)/8K50F3E (Narrow-FM)
* Frequency resolution: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
* Memory channels: 100 channels plus 1 call channel
* Antenna impedance: 50 ohm unbalanced (SO-239)
* Frequency stability: Plus/minus 2.5 ppm
* Microphone impedance: 2 kilohms
* Rated voltage: 13.8V DC, plus/minus 15 percent (11.7-15.8V)
* Current drain: approximately 8.0A Transmit
* Current drain receive: 600mA, 400mA squelched
* Operating temperature: 14 degrees F to 140 F
* Polarity: Negative ground
* Dimensions: 5.58 in. (W) x 1.57 in. (H) x 6.83 in. (D)
* Weight: 35.3oz.
Transmitter details:
* Power output: 25W (HI), 10W (MID), 5W (LOW)
* Modulation: Variable reactance
* Spurious emission: -60 dB or less
* Frequency deviation: Plus/minus 5 kHz; plus/minus 2.5 kHz (Narrow mode)
Receiver details:
* Circuitry: Double-conversion Superheterodyne
* Sensitivity: 0.25uV or less, 12dB SINAD
* Intermediate frequencies: 1st IF 30.85 MHz, 2nd IF 455 kHz
* Squelch sensitivity: -16.0 dBu (0.1 uV)
* Selectivity: FM: -6 dB at 12 kHz or more, 6 kHz or more (Narrow mode)
* Selectivity, FM: -60 dB at 28 kHz or less, 14 kHz or less (Narrow mode)
* Audio output: 2.0 W into 8 ohms at 10 percent THD

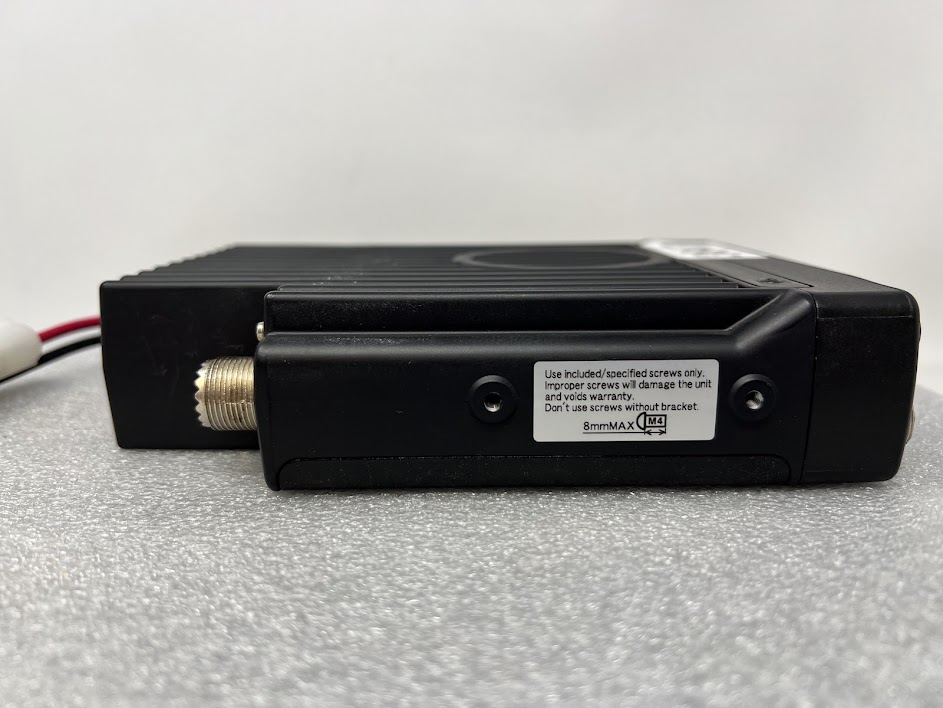

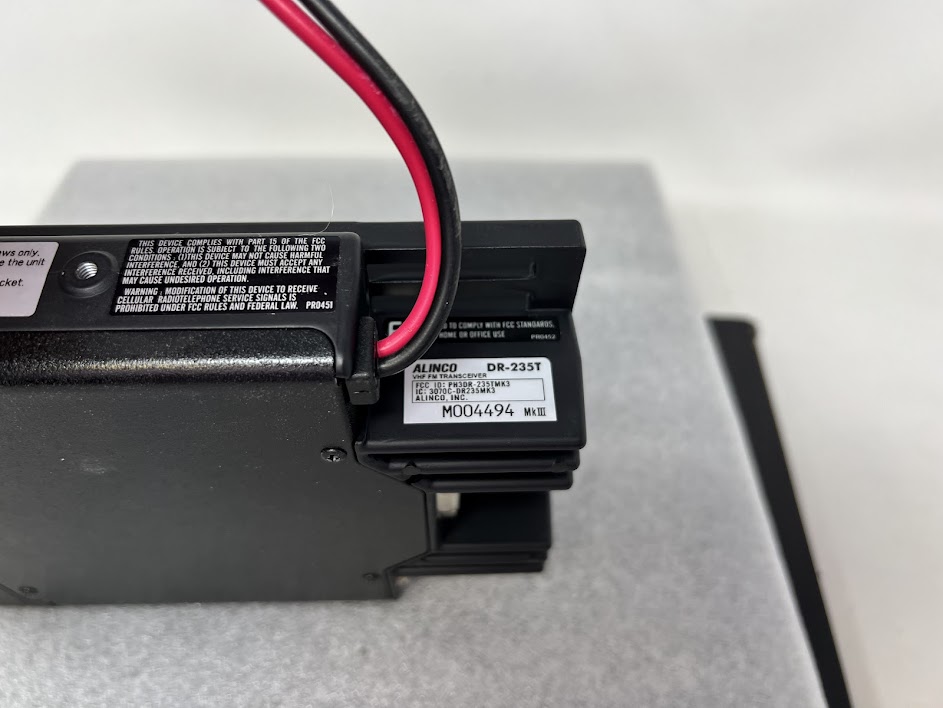

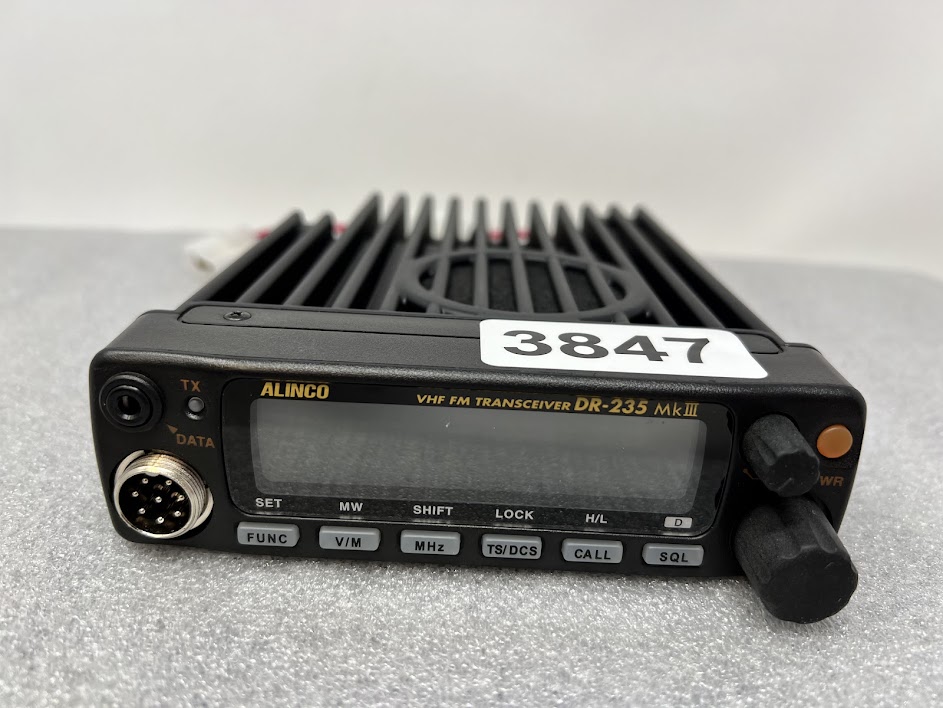

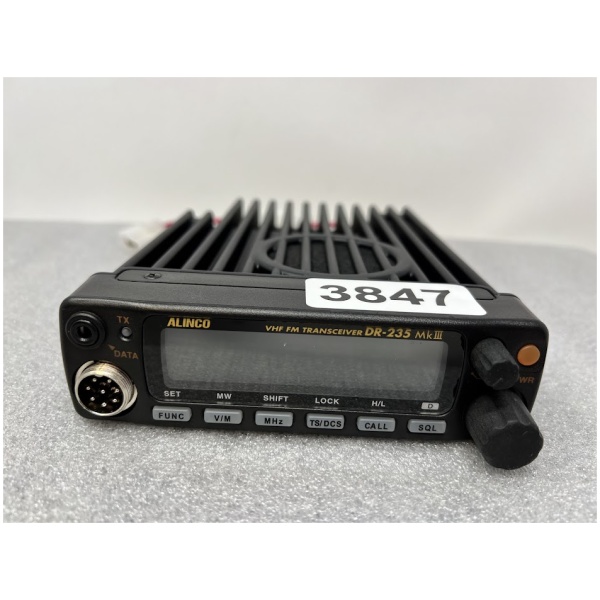

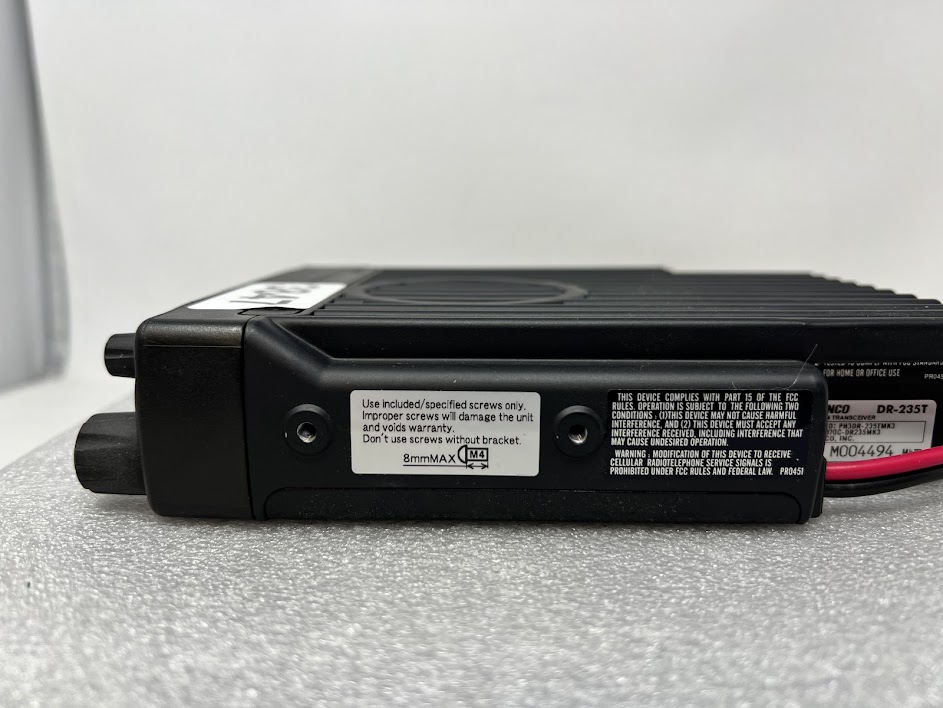

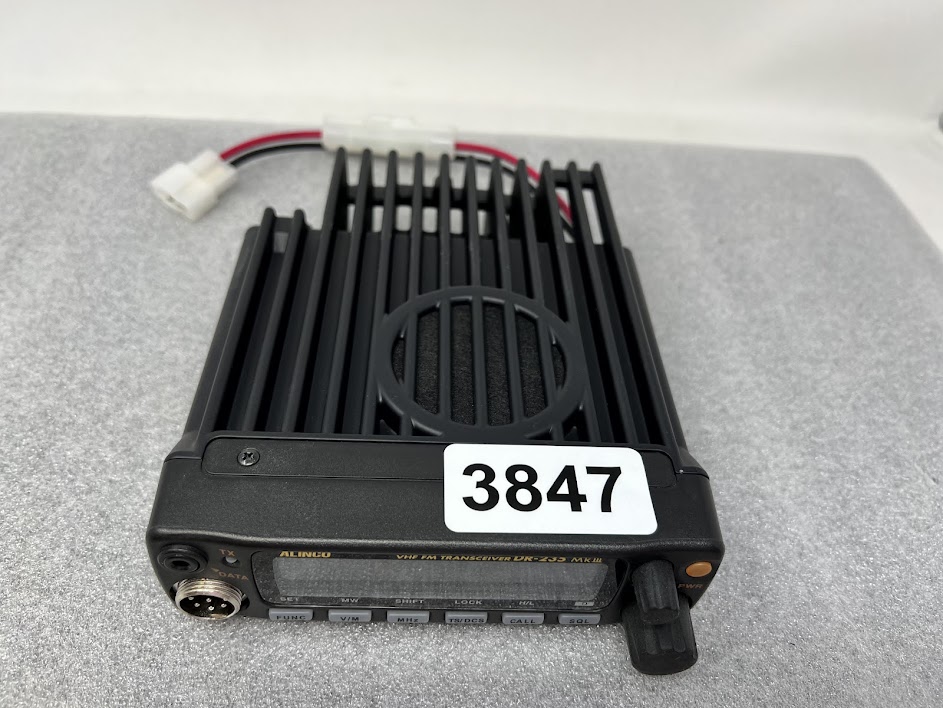

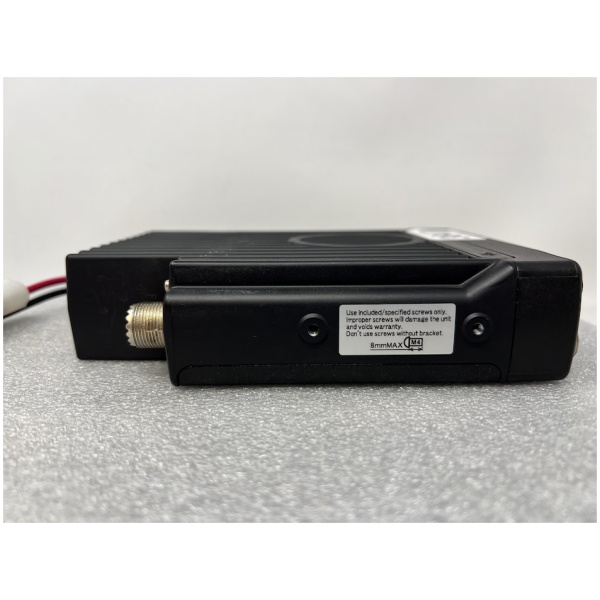

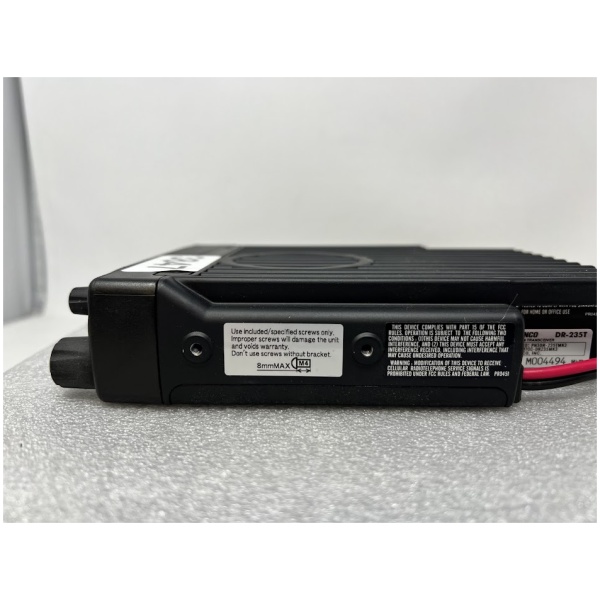

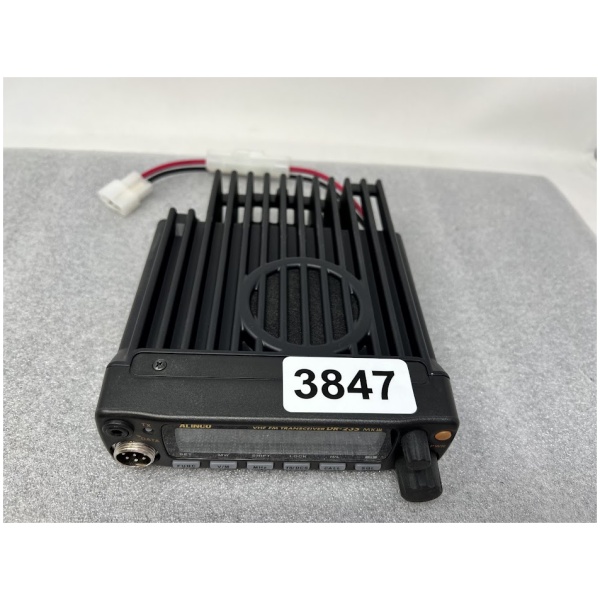

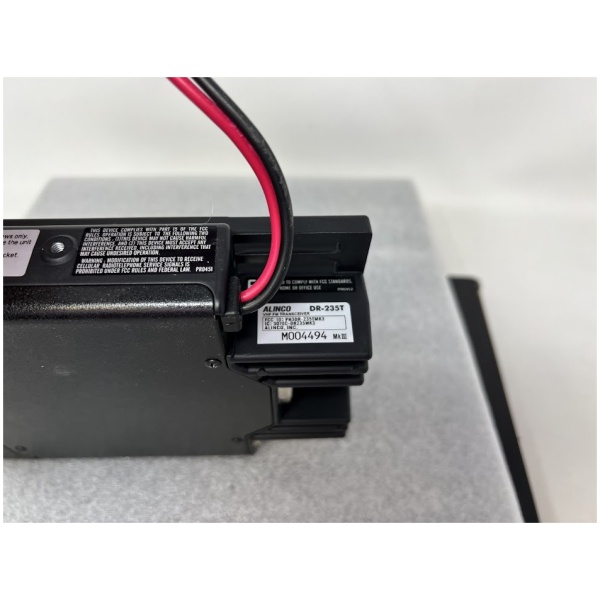

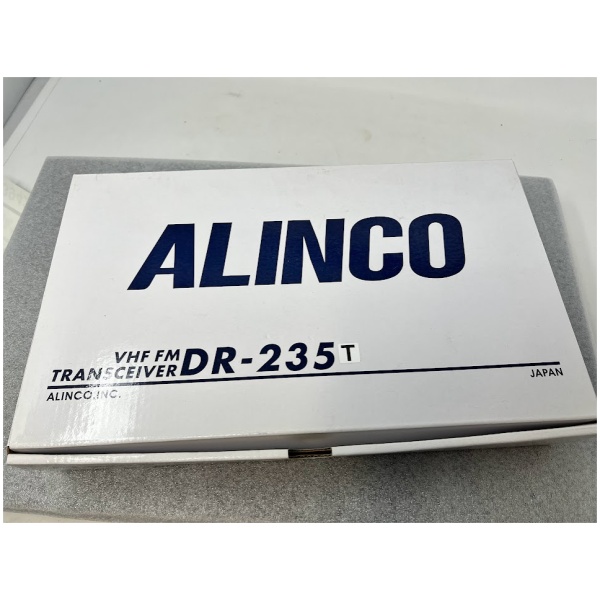

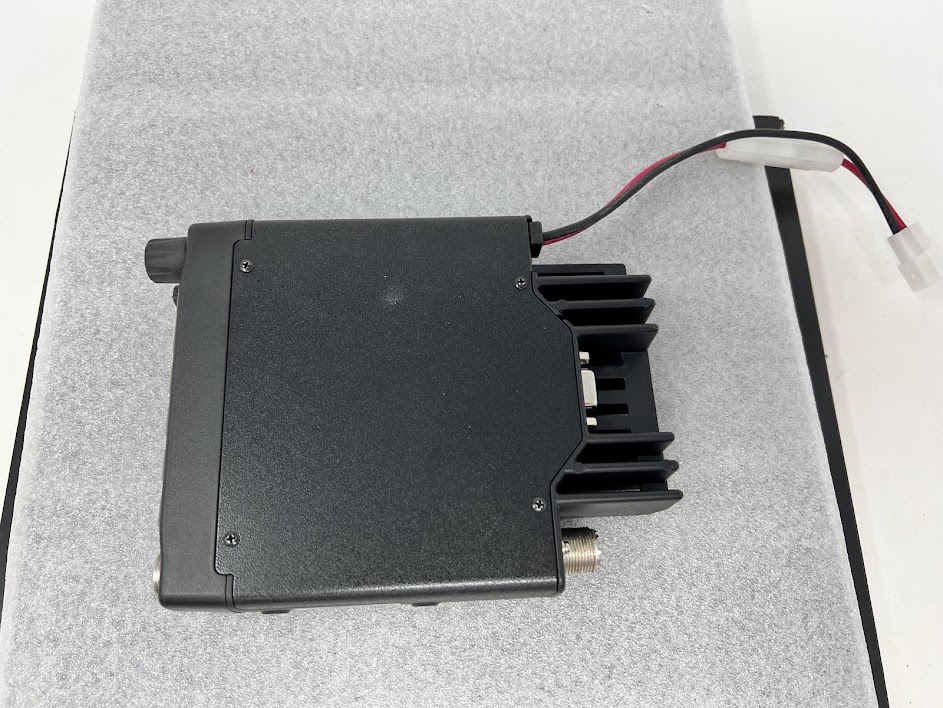

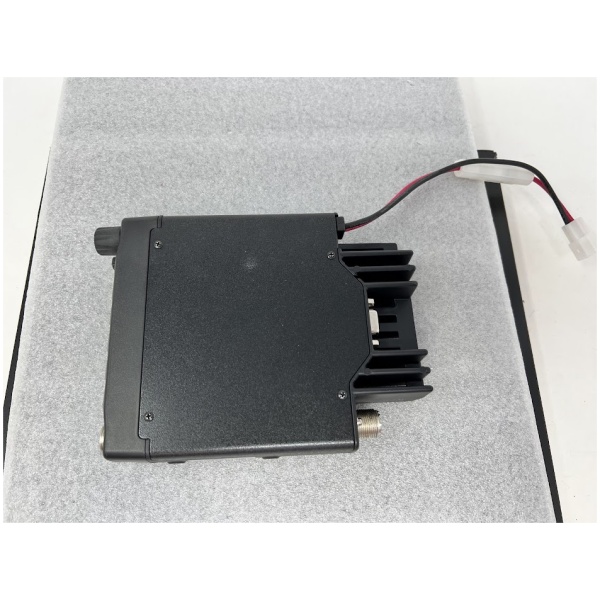

Used Item in Like New. Please see pictures.
Item tested for basic functionality and work as it should.

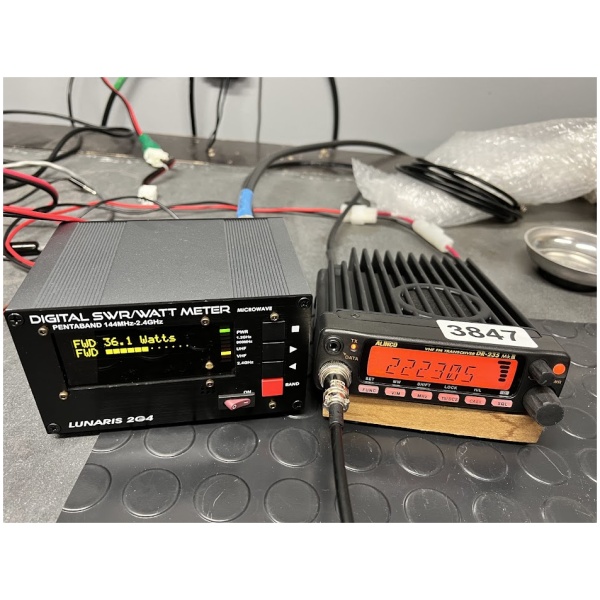

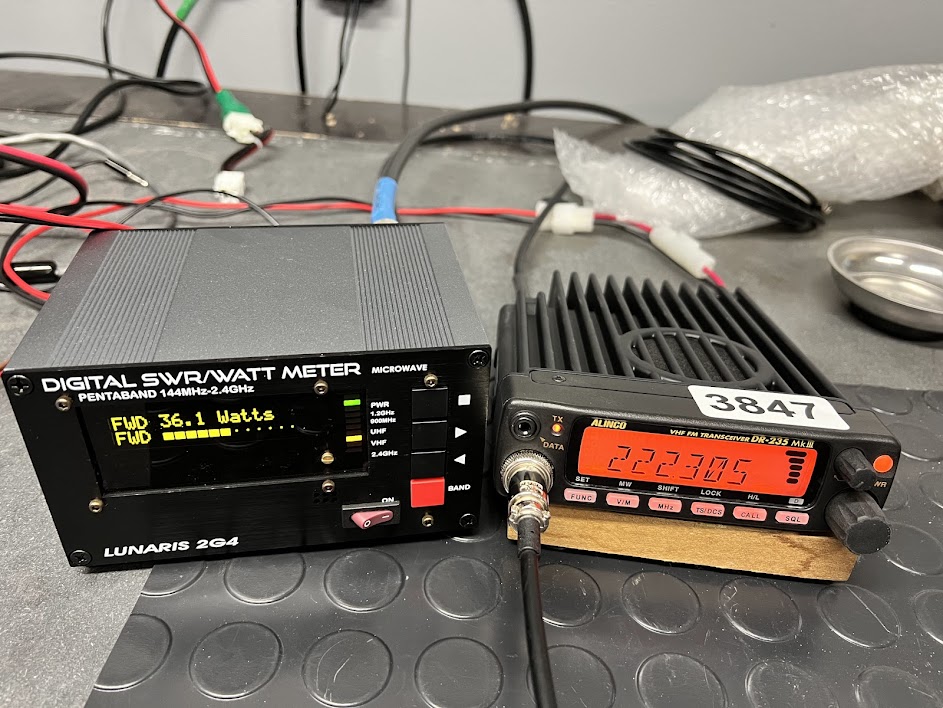

Please note any test instruments and meters used to show functionality in photos are not included.

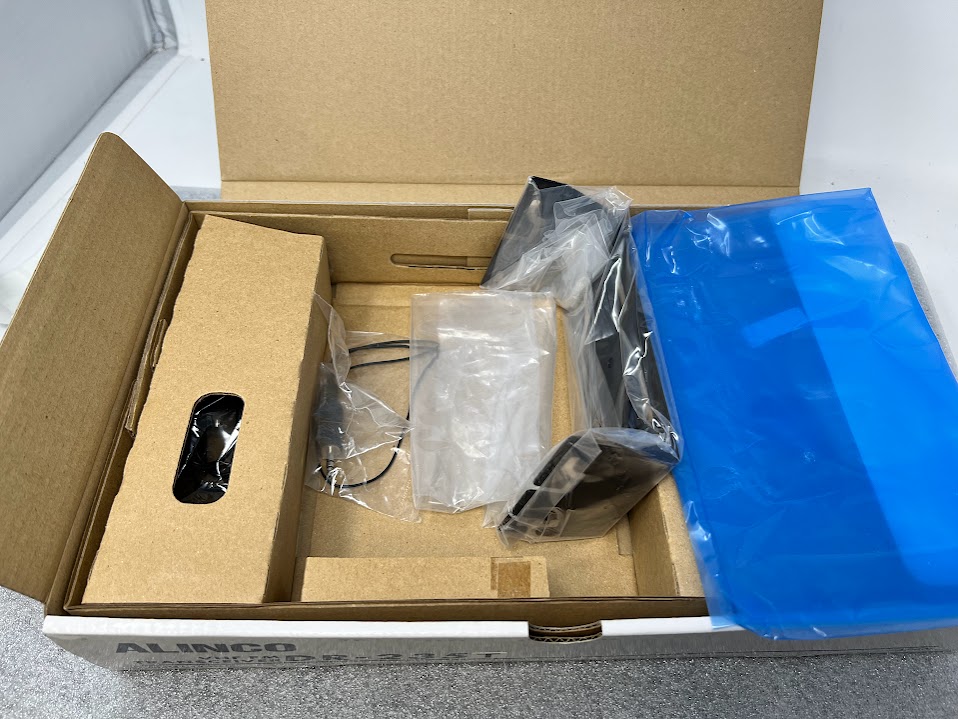

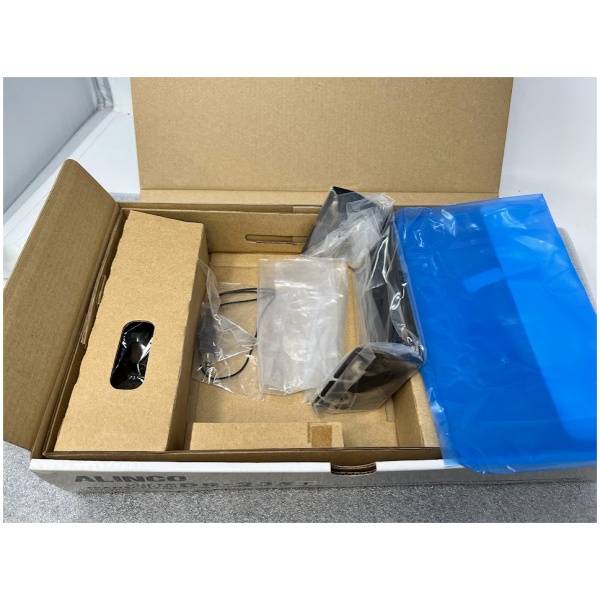

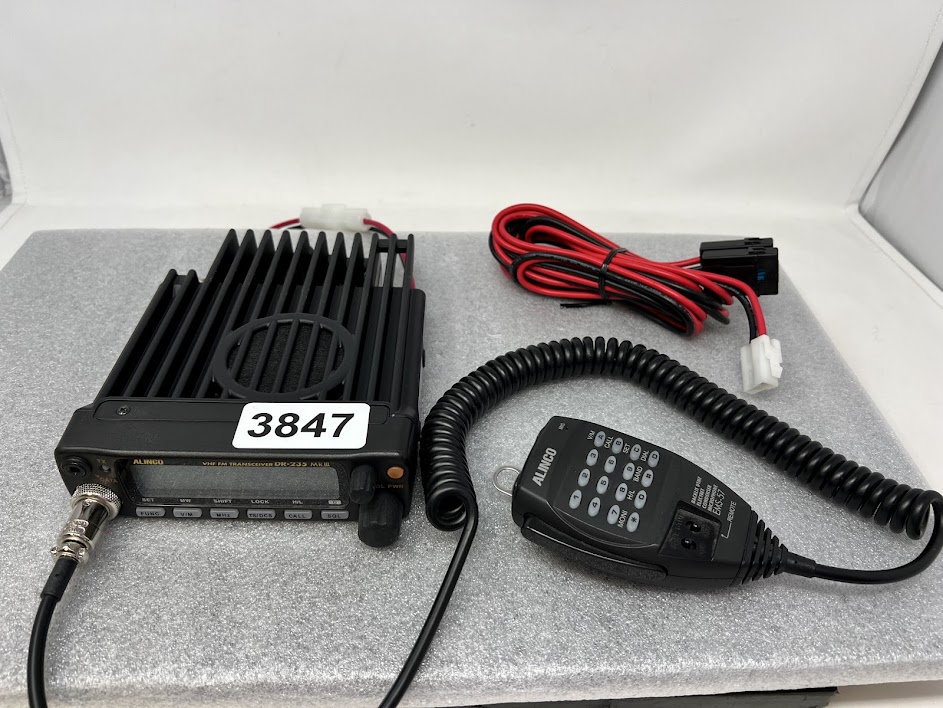

What you see in the photos that forms part of the accessories of the specific unit is included, nothing more.
All these pieces comes from working ham shacks as well as storage units and sold as is.
If you have questions please ask before committing to buying. Please read our sales terms and conditions.
Thank you for supporting the family of a SK!
