Description

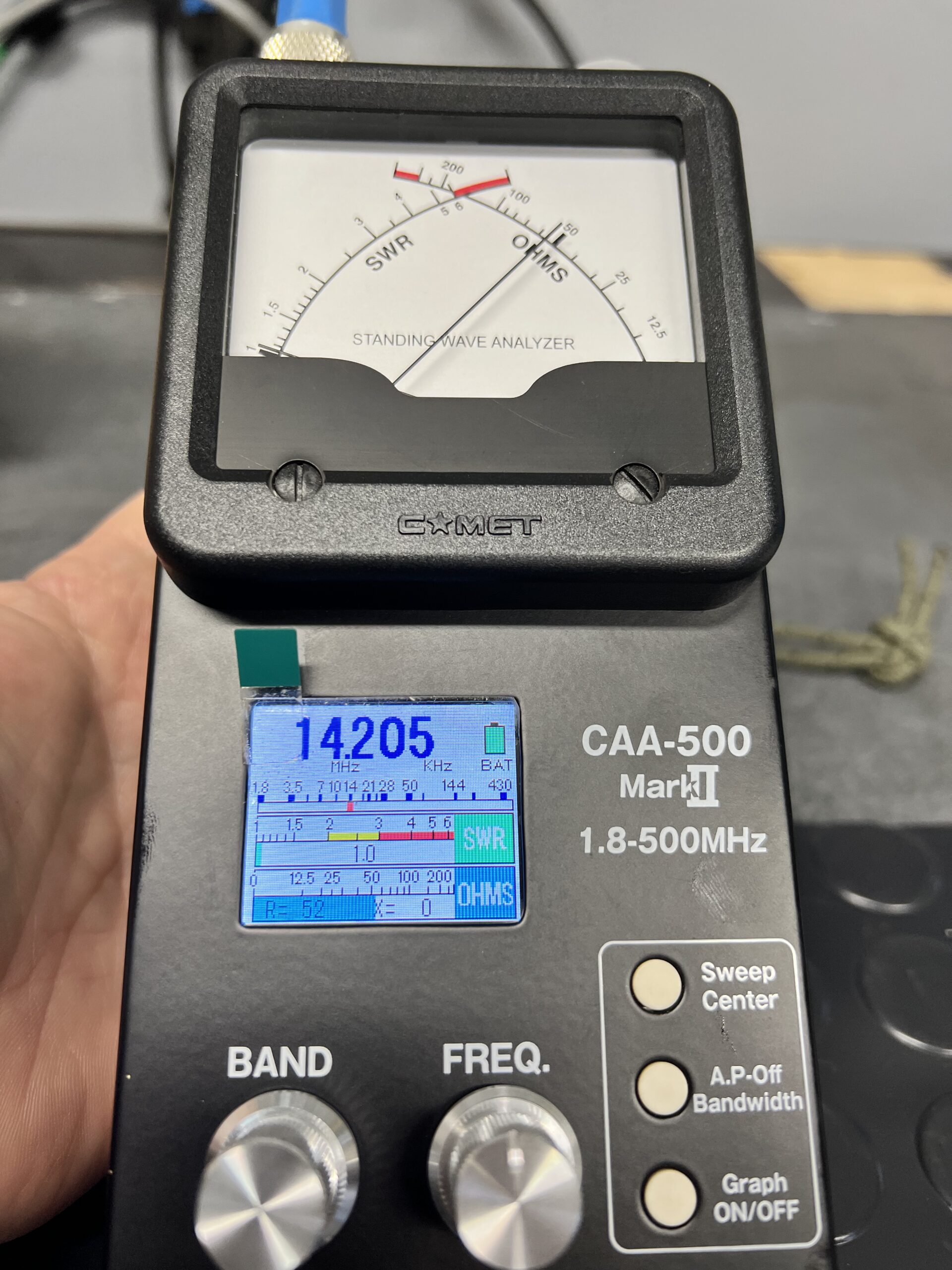

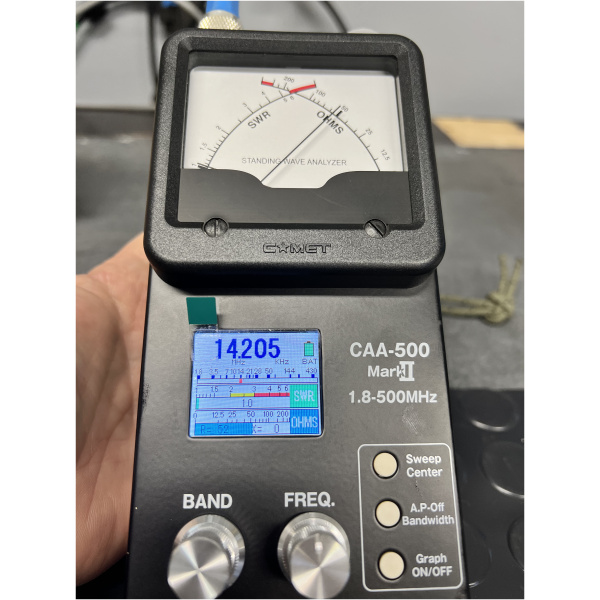

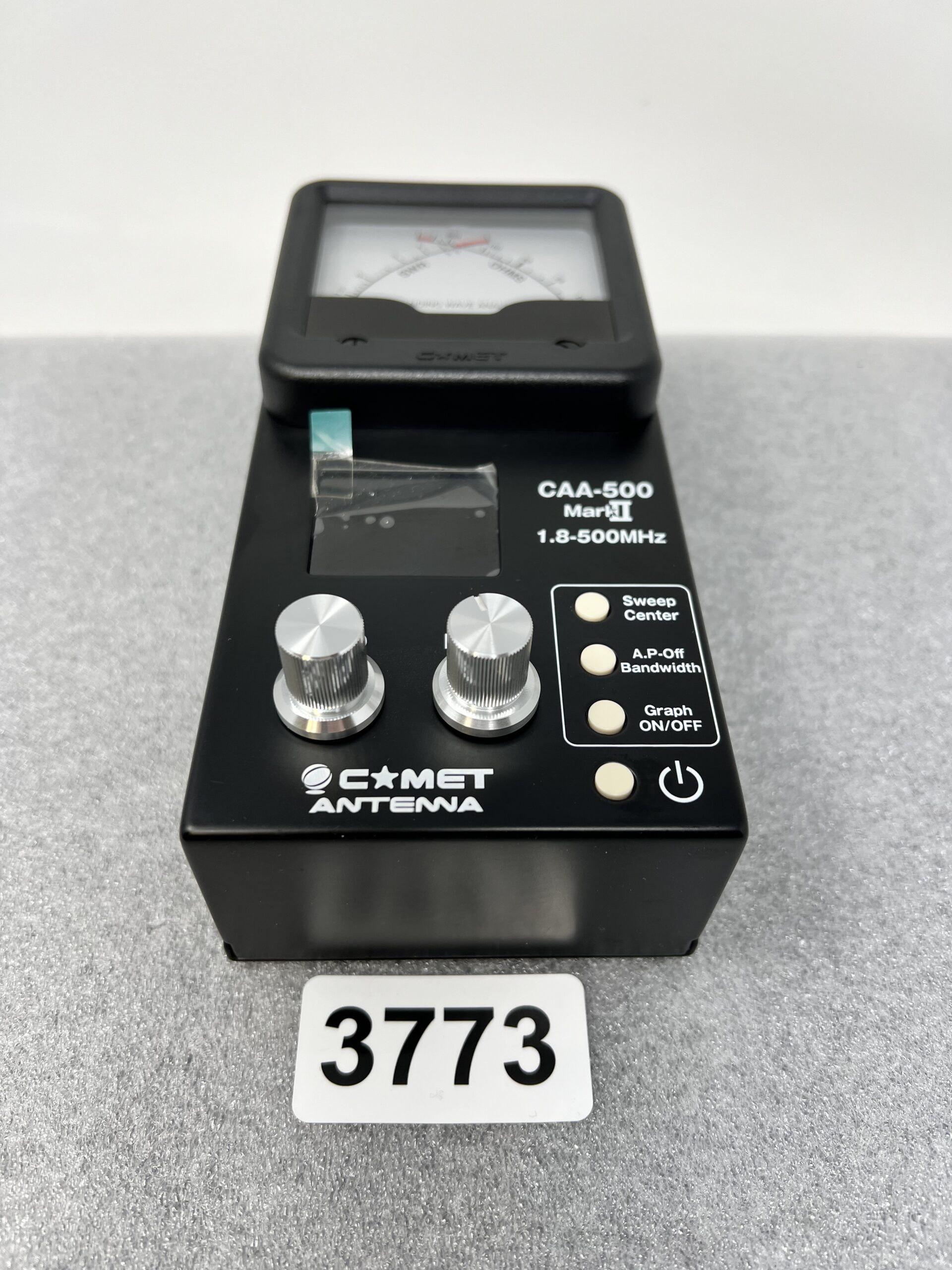

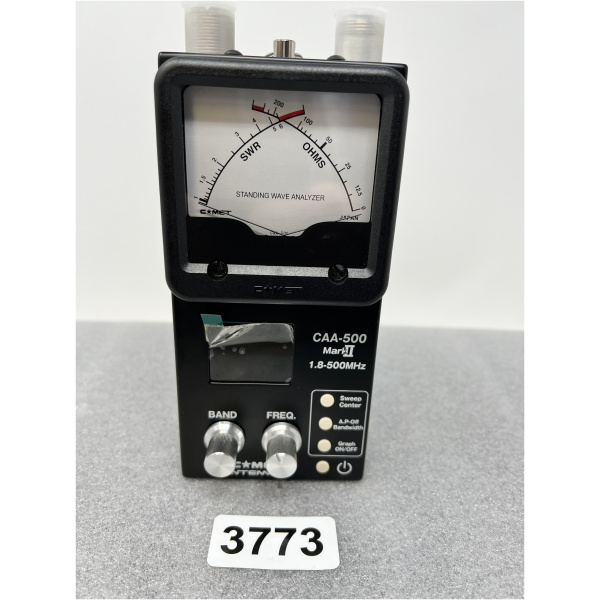

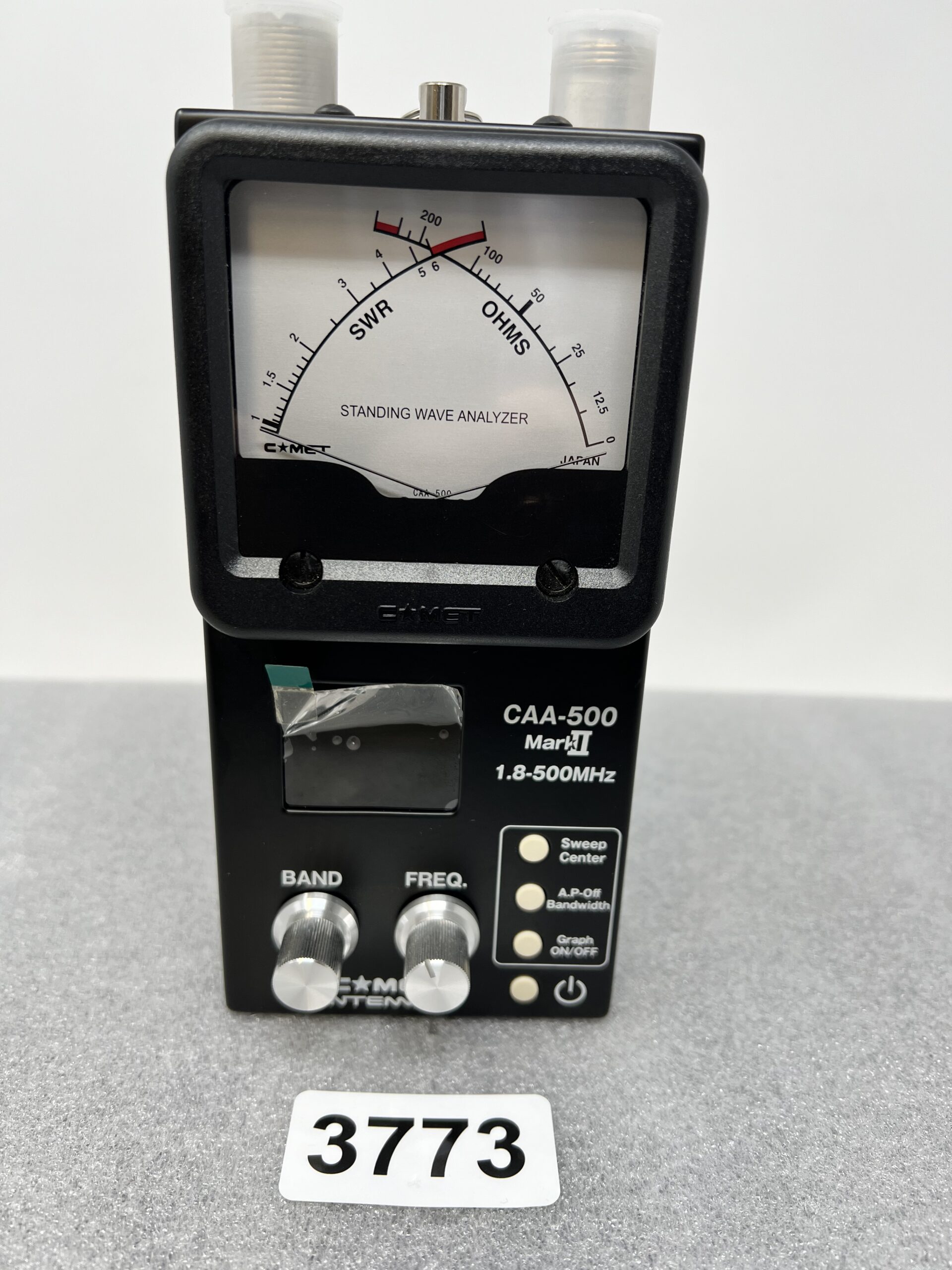

Highly accurate analog cross needles display SWR and impedance simultaneously.
Full color TFT LCD display screen provides graphic and numerical SWR along with total impedance with R and X values.
Features:
AUTO SWEEP MODE
Automatically graphs the SWR on the LCD display. Choose any one of the pre-set amateur band frequency ranges and press the sweep button…in about 30 seconds the SWR graph is completed.
MANUAL SWEEP MODE
Choose the band, manually set the band-width you desire, then manually sweep the chosen frequency range.
MULTIPLE MANUAL SWEEPS
Should you want to make an adjustment to the antenna length, the position, height above ground, a gamma match adjustment, etc… you can overlay multiple manual sweep results in 5 different colors! Instantly graph and see exactly what happened after each adjustment!
Range: 1.8 – 500MHz (including 222MHz band)
- RF output level: 0dBm 1 mW
- Measured SWR Range: Analog meter 1.0 – 6.0:1 , LCD display 1.0 – 9.9:1
- Impedance measurements: 12.5-300 ohms
- Reactance range: 0 – 500 Ohms (absolute value) 1.8 -190MHz
- Battery indicator and selectable Auto-Power-Off timer

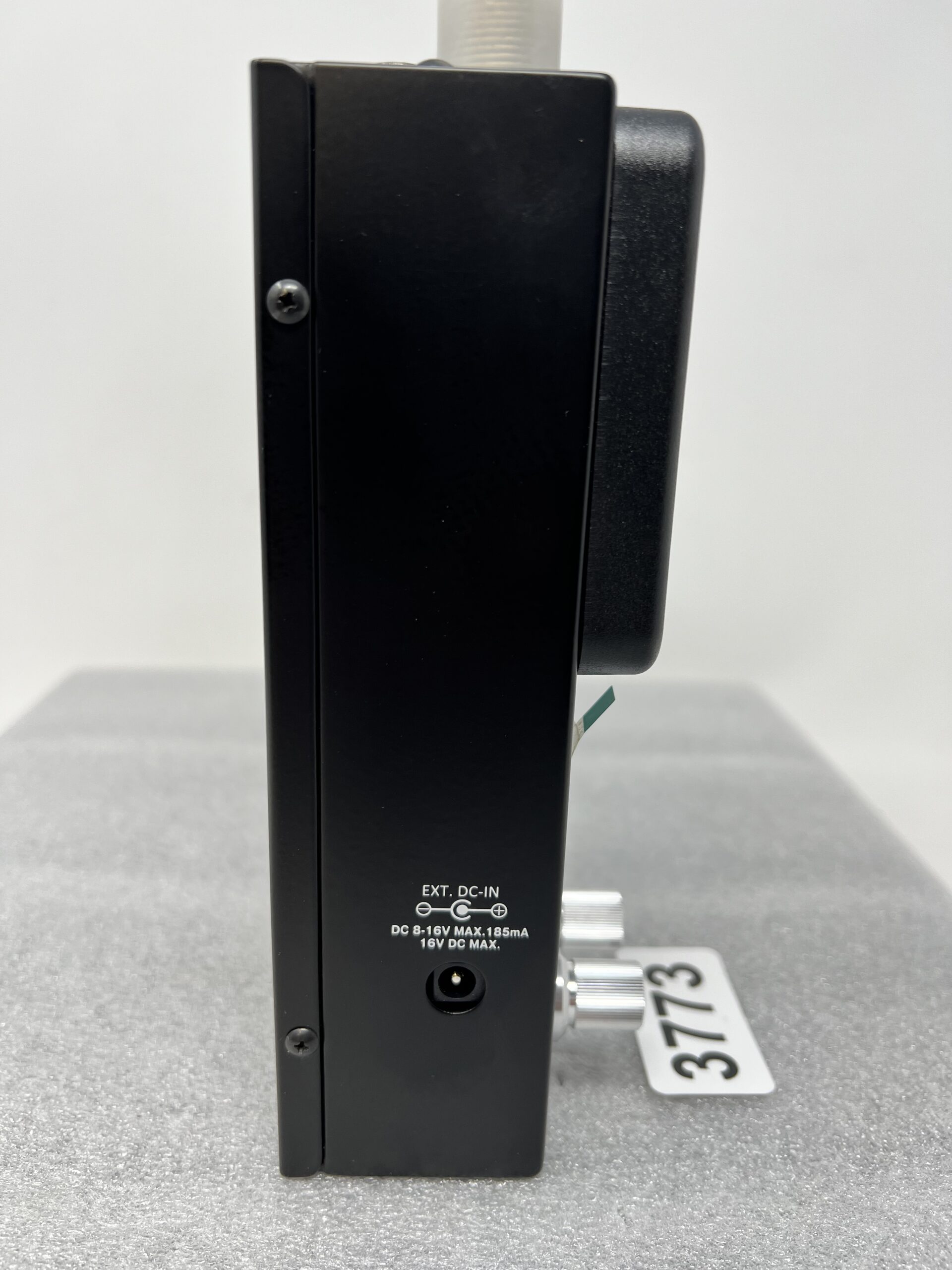

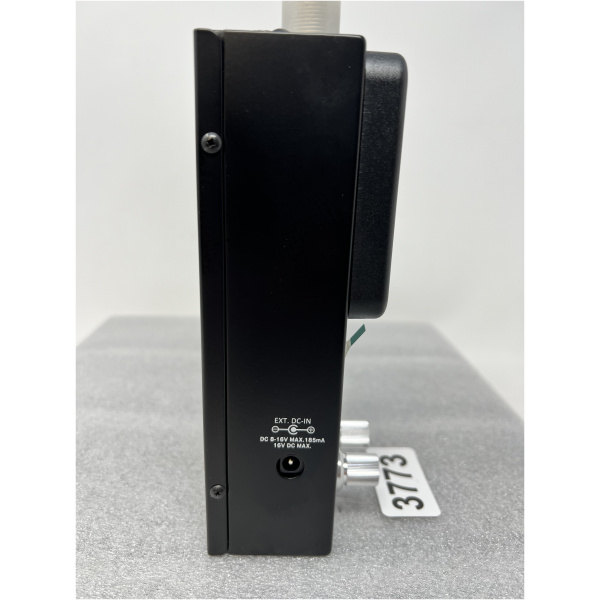

- Operates up to 9 hours continuous using six AA Alkaline or NiMH cells (not included) or use an external 8-16VDC 200ma power source (DC cable included)
- Internal trickle charger option when using NiMH batteries

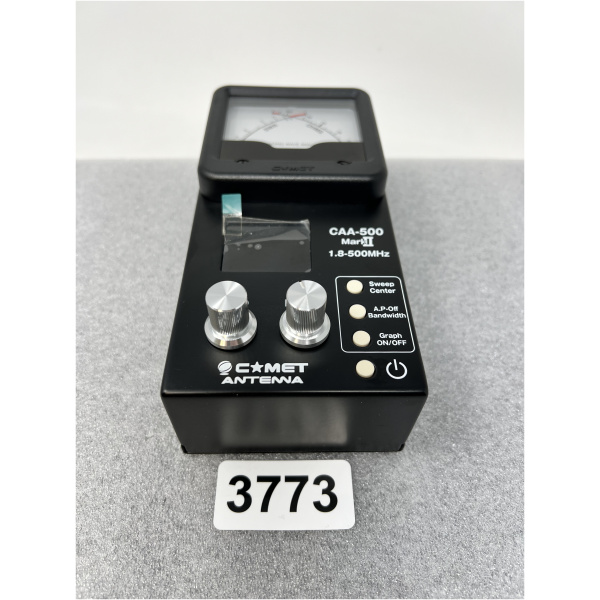

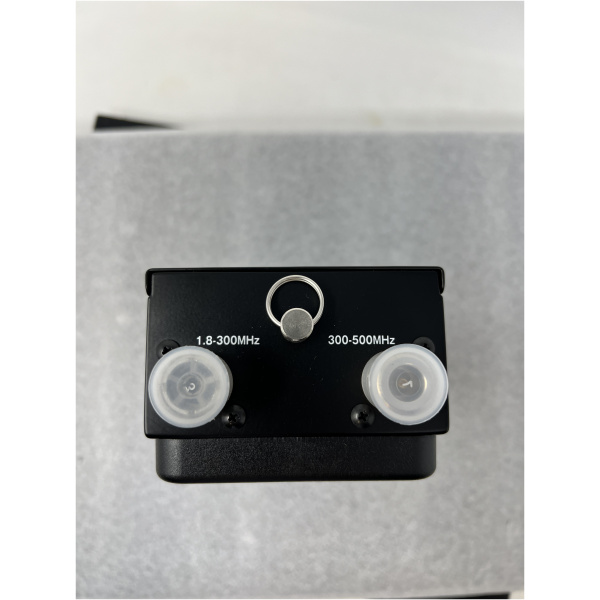

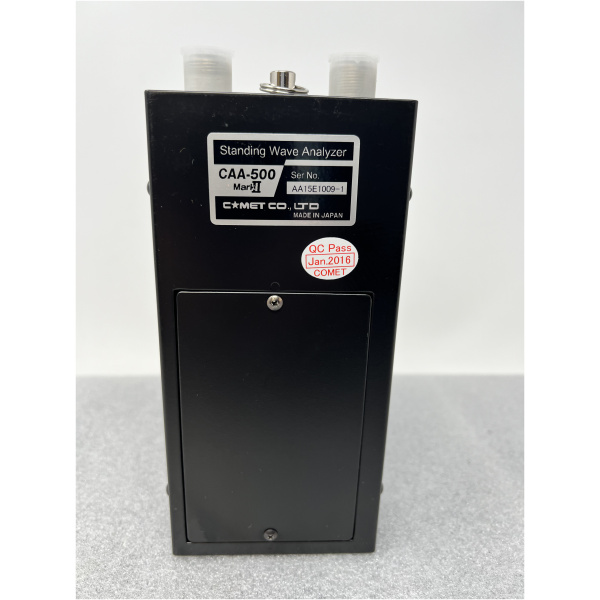

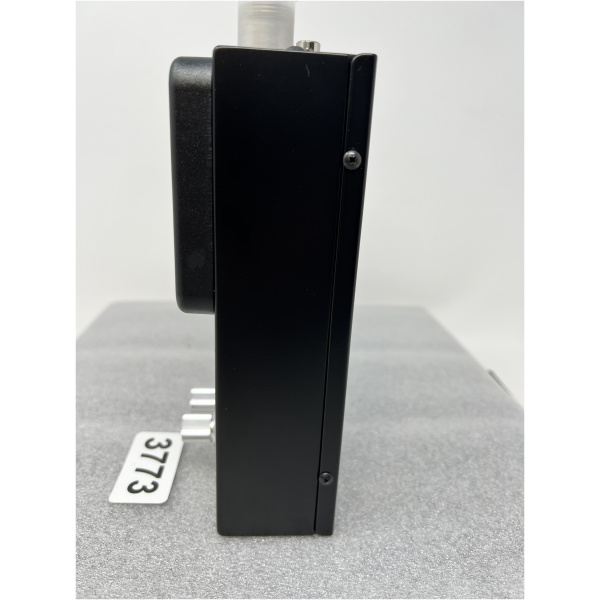

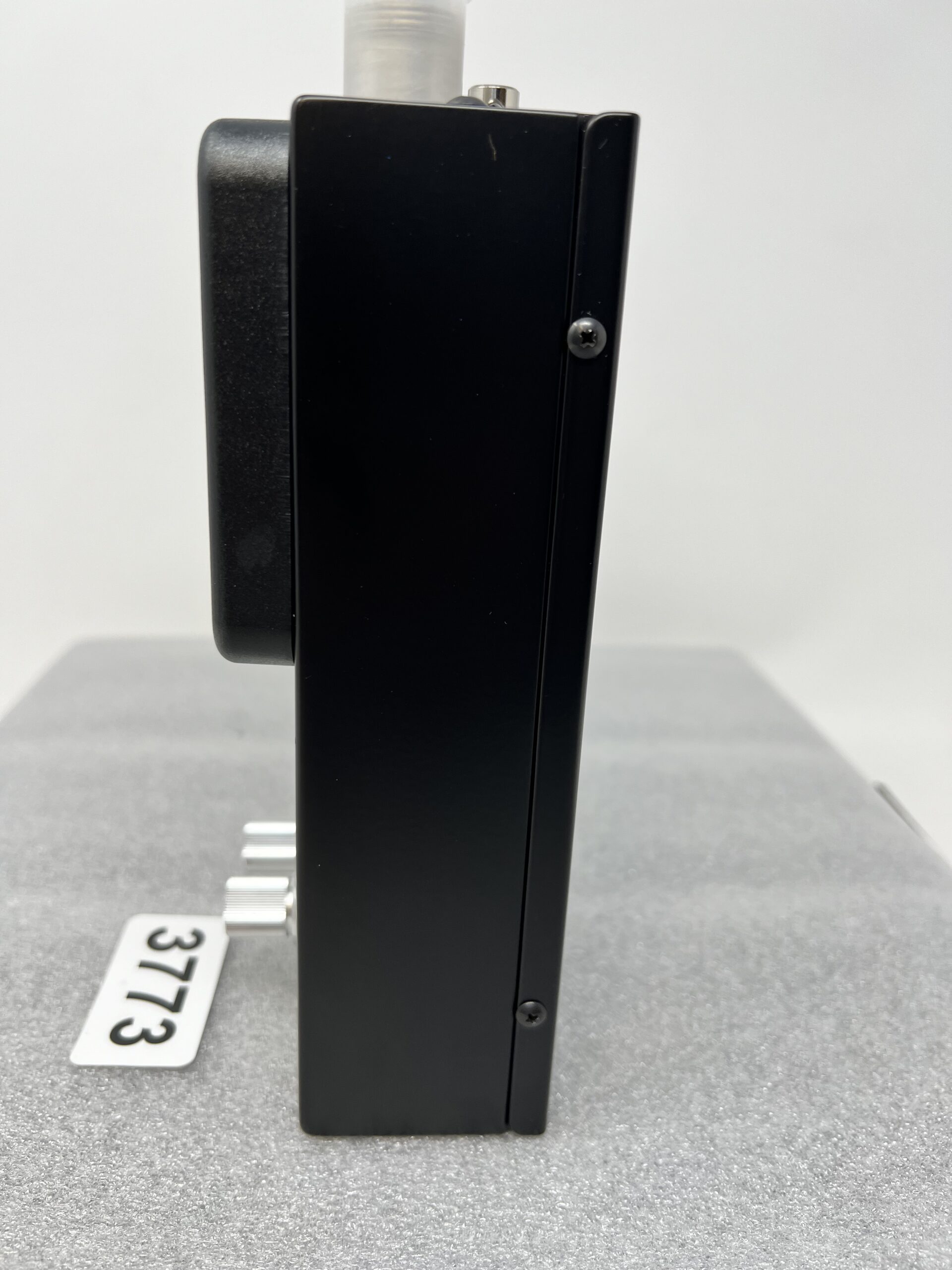

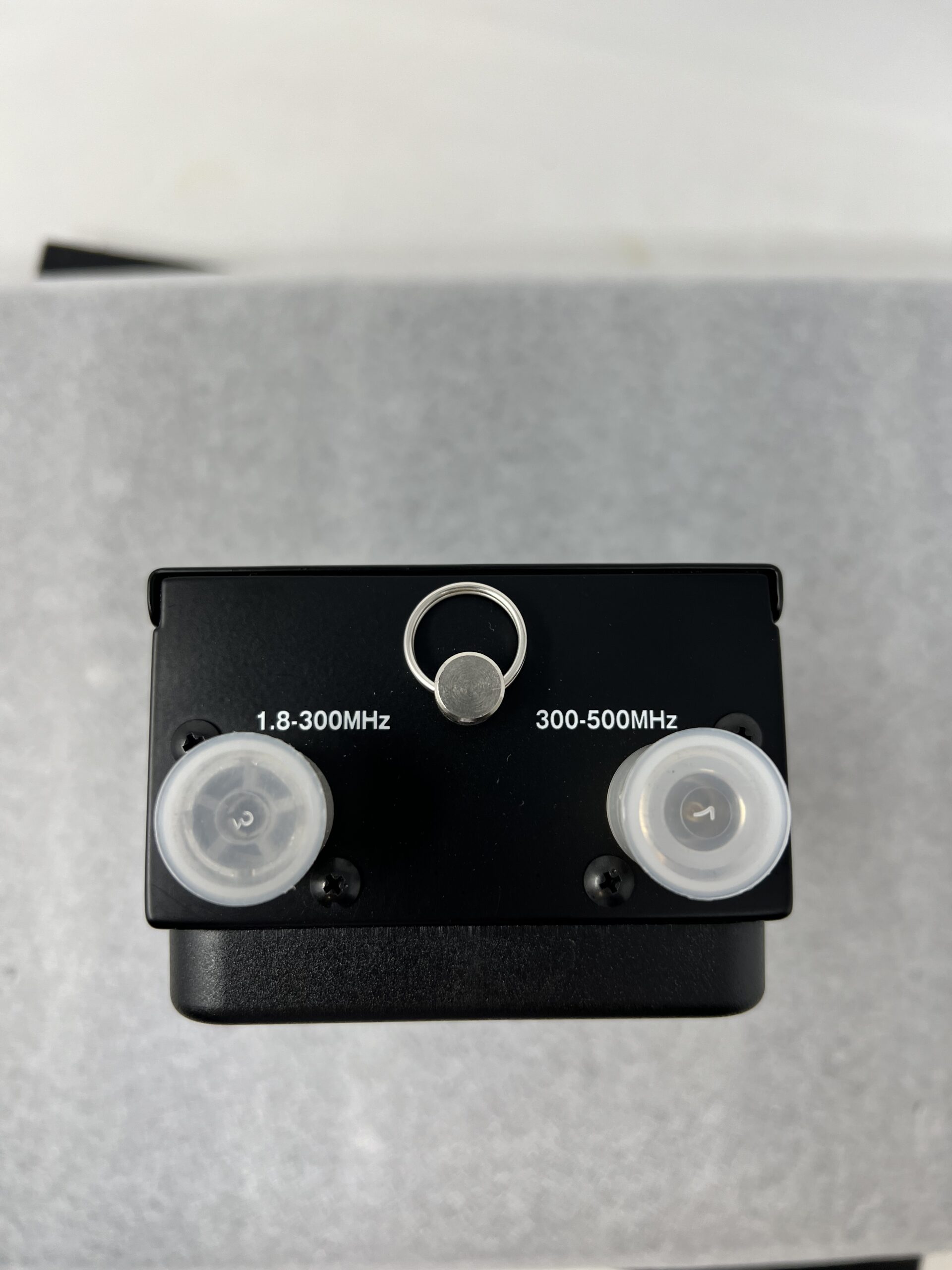

Please note any test instruments and meters used to show functionality in photos are not included.

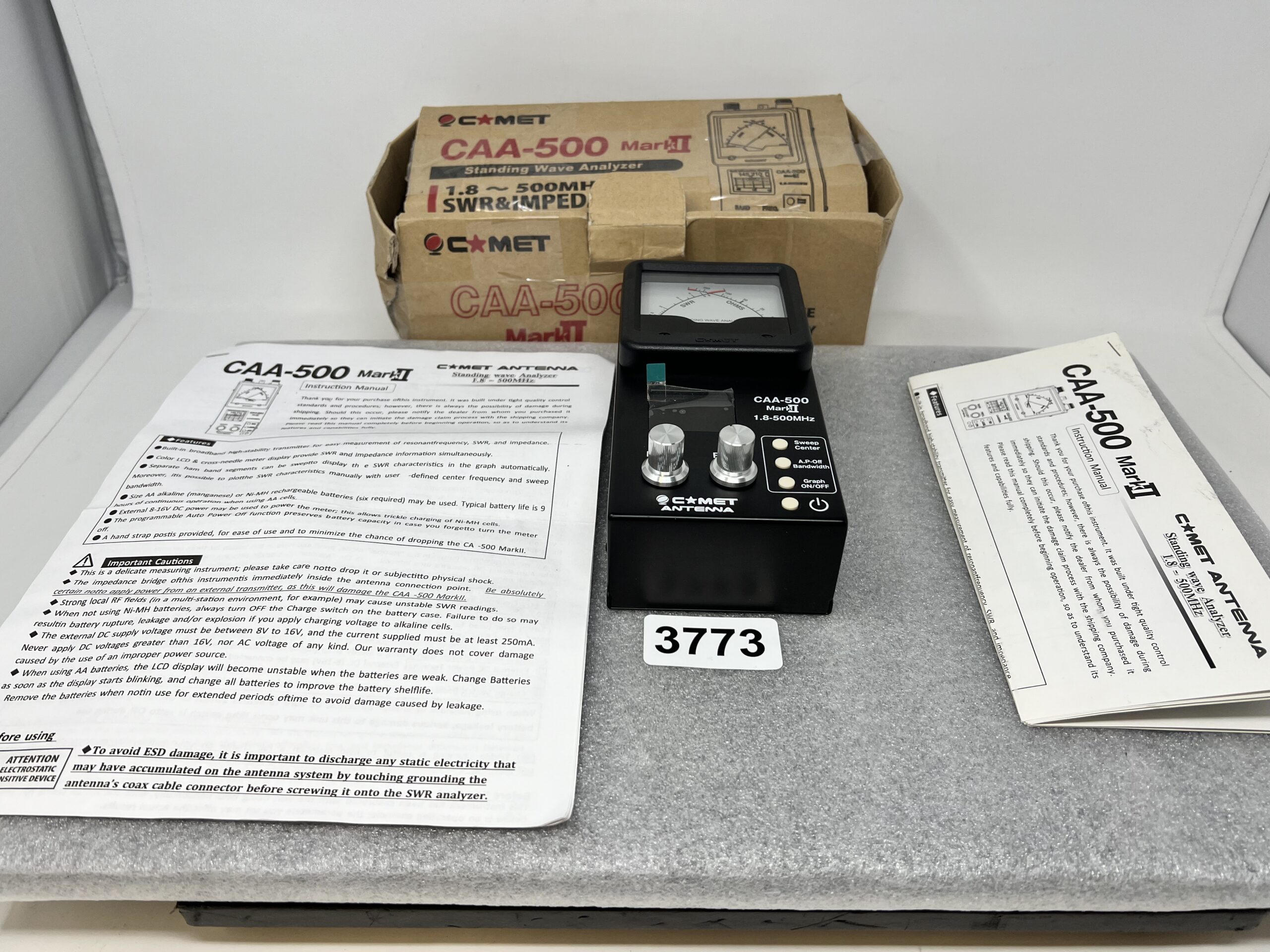

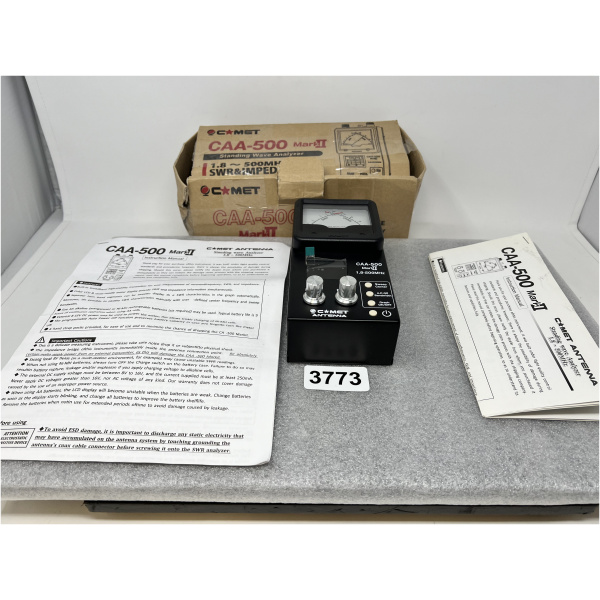

What you see in the photos that forms part of the accessories of the specific unit is included, nothing more.
All these pieces comes from working ham shacks as well as storage units and sold as is.
If you have questions please ask before committing to buying. Please read our sales terms and conditions.
Thank you for supporting the family of a SK!
